Bend

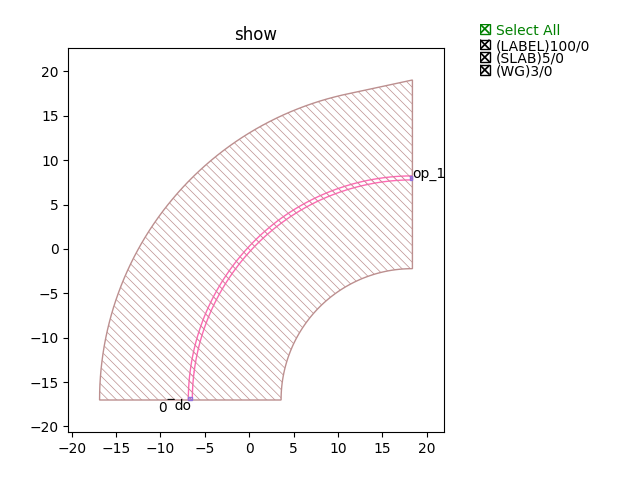

SOI500nm_1550nm_TE_RIB_90_Degree
ports
waveguide type
orientation
op_0
TECH.WG.SOI_RIB.C.WIRE
270
op_1
TECH.WG.SOI_RIB.C.WIRE
0
