MultiMode Interferometers (MMI)

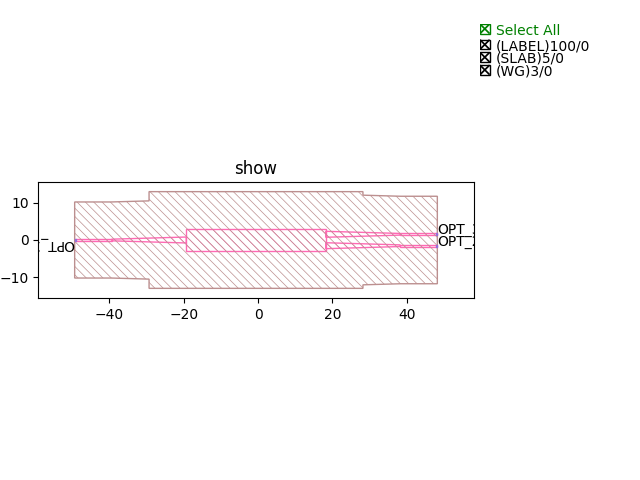

SOI500nm_1550nm_TE_RIB_2x1_MMI

../_images/SOI500nm_1550nm_TE_RIB_2x1_MMI.png

ports	waveguide type	orientation
OPT1	TECH.WG.SOI_RIB.C.WIRE	180
OPT2	TECH.WG.SOI_RIB.C.WIRE	0
OPT3	TECH.WG.SOI_RIB.C.WIRE	0

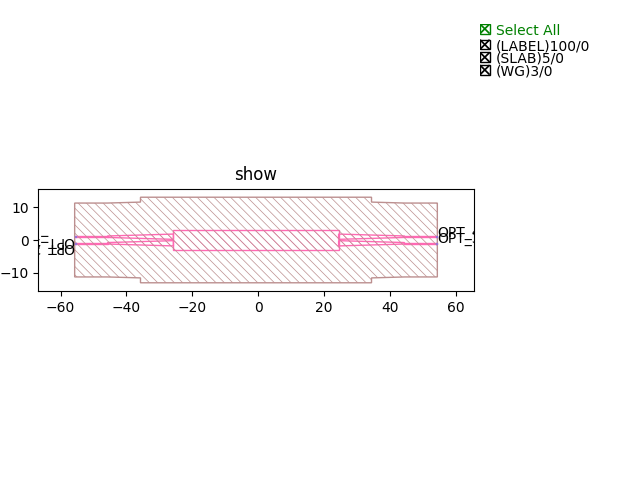

SOI500nm_1550nm_TE_RIB_2x2_MMI

../_images/SOI500nm_1550nm_TE_RIB_2x2_MMI.png

ports	waveguide type	orientation
OPT_1	TECH.WG.SOI_RIB.C.WIRE	180
OPT_2	TECH.WG.SOI_RIB.C.WIRE	180
OPT_3	TECH.WG.SOI_RIB.C.WIRE	0
OPT_4	TECH.WG.SOI_RIB.C.WIRE	0
